ROMESS DISTRONIC-SÄÄTÖLAITE DTR
With the Distronic-adjusting device the adjustment of the
Distronic at the vehicle can be done in a simple way. The
provided adjusting device case serves for testing the adjusting
device as well as for the storage of the dipsticks, which are
installed at the wheel bracket and for the storage of the adjusting
device with battery cable.
Description:
The adjusting device is mounted on the Distronic by creating a partial vacuum
of 600 mbar with a vacuum pump. A laser beam is then projected on a given
“target” (testing device). The adjusting device is tested by the exit of a laser
beam through a test boring The Distronic-adjusting device consists of a
protection housing with centering supports and self testing device (control
device), 3 interchangeable centering rings for different models of vehicles,
laser projector (power 12 V), vacuum, water-level, spiral connection cable with
plug for 12 V-bush, with catch chain and 2 dipsticks.
Technical Data:
Voltage supply: 12 V–24 V DC
Current consumption: about 50 mA
Cable length: about 2.5 m
Beam form: oval, about 3 mm
Laser power: about 1 mW (class 2) – pay attention to safety hints!
Material: aluminium, processed bras
Weight: about 9.0 kg
Dimensions (LxWxH) in mm: 450 x 300 x 200

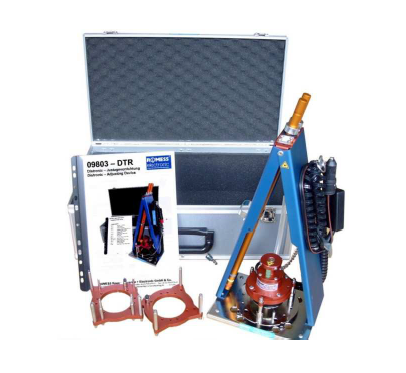

Scope of delivery:
Adjusting device with protection housing, 3 centering rings and 2 dipsticks in
case for storage and transport
